Double-Sided LED Display – Ultra Slim Dual Face Digital Signage

Name: Double-Sided LED Display – Ultra Slim Dual Face Digital Signage
Brand: Shenzhen H&S Innovation Technology Co., Ltd
SKU: P1.5/P1.9/P2.6/P3.1
Price: 1,100.00 USD
Availability: InStock

Dettagli del prodotto

Luogo di origine: Shenzen Cina

Marca: HSCXLED

Certificazione: KC CE CE-LVD CE-EMC ROHS FCC CCC ISO9001

Numero di modello: P1.5/P1.9/P2.6/P3.1

Termini di pagamento e di spedizione

Quantità di ordine minimo: 1SET

Imballaggi particolari: Cassa da combattimento/Cassa in legno/Cassa per fave di miele

Tempi di consegna: 15-25 giorni lavorativi

Termini di pagamento: L/C, D/A, D/P, T/T, Western Union

Capacità di alimentazione: 1000SET/30 giorni

Ottenga il migliore prezzo

Dettagli del prodotto

Descrizione del prodotto

Dettagli del prodotto

Evidenziare:
                                                                                                                                                                                                                                                                                                            dual sided led screen, double face led display, ultra slim led display


Nome del prodotto:	Display LED ultra sottile	Applicazione:	Display LED pubblicitario
Dimensioni del modulo:	250*250 mm	Dimensioni del mobile:	500x500mm
Dimensioni dello schermo:	Qualsiasi taglia può essere personalizzata.	Materiali del Governo:	Profilo in alluminio
Manutenzione:	Servizio frontale	Luminosità:	600-3500 nit
Frequenza di aggiornamento:	7680Hz	Grado di protezione IP:	IP31
Sistema di controllo:	Nova, Colorlight, Linsn o come richiesto

Nome del prodotto:	Display LED ultra sottile
Applicazione:	Display LED pubblicitario
Dimensioni del modulo:	250*250 mm
Dimensioni del mobile:	500x500mm
Dimensioni dello schermo:	Qualsiasi taglia può essere personalizzata.
Materiali del Governo:	Profilo in alluminio
Manutenzione:	Servizio frontale
Luminosità:	600-3500 nit
Frequenza di aggiornamento:	7680Hz
Grado di protezione IP:	IP31
Sistema di controllo:	Nova, Colorlight, Linsn o come richiesto

Descrizione del prodotto

HSCXLED ultra-slim double sided LED display features a 30 mm thin cabinet & true dual-face independent control, perfect for retail windows & mall advertising. With ≥7680Hz refresh rate, full front maintenance, and wireless module connection, this digital signage maximizes 360° visibility and ROI. Custom pixel pitch (P1.56-P3.1) available. Leading LED display manufacturer with global service.

The HSCXLED Double-Sided LED Display is a next-generation digital signage solution engineered for high-traffic commercial environments. With two independent LED panels integrated into a single ultra-slim aluminum cabinet (approx. 30mm thickness), it delivers 360° visibility—engaging audiences on both sides simultaneously without doubling your installation footprint. Ideal for retail storefront windows, shopping mall corridors, airports, banks, and exhibition halls, this dual-sided LED screen maximizes advertising exposure and ROI for your business.

Double-Sided LED Display – Ultra Slim Dual Face Digital Signage 0

Key Features of double side led display:

✔ True Dual-Sided Independent Display Control

Supports displaying identical content on both sides, running different advertisements targeting separate audiences, or synchronizing content across both faces—giving you full flexibility in campaign management.

✔ Ultra-Slim & Lightweight Cabinet Design

Cabinet thickness ≈ 30mm with lightweight aluminum structure. Minimal visual obstruction, perfectly suited for glass window and storefront installations.

✔ Full Front Access Maintenance

Magnetic module attachment enables tool-free front service on both sides. Modules can be hot-swapped without shutting down the system—reducing downtime and maintenance costs.

✔ Wireless Module Connection & Hard Connection Structure

Innovative wireless module linking combined with a hard-connection design eliminates complex internal cabling, enhances signal stability, and improves long-term reliability.

✔ High Brightness, ≥7680Hz Refresh Rate & High Grayscale

High brightness for clear visibility in well-lit environments; flicker-free video playback with ≥7680Hz refresh rate; high grayscale for accurate color reproduction—ideal for premium retail and advertising applications.

✔ 160° Ultra-Wide Viewing Angle

Consistent image quality from multiple viewing perspectives, ensuring impactful messaging in wide-open spaces like malls and transit hubs.

✔ Seamless Splicing for Custom Large Formats

Modular design supports seamless splicing to create large-format LED video walls with 2K / 4K / 8K / 16K ultra-high-definition resolutions.

Technical Specifications of double side led display:

Parameter	Specification
Pixel Pitch Options	P1.56 / P1.95 / P2.6 / P2.976 / P3.1
Module Size	250 × 250 mm

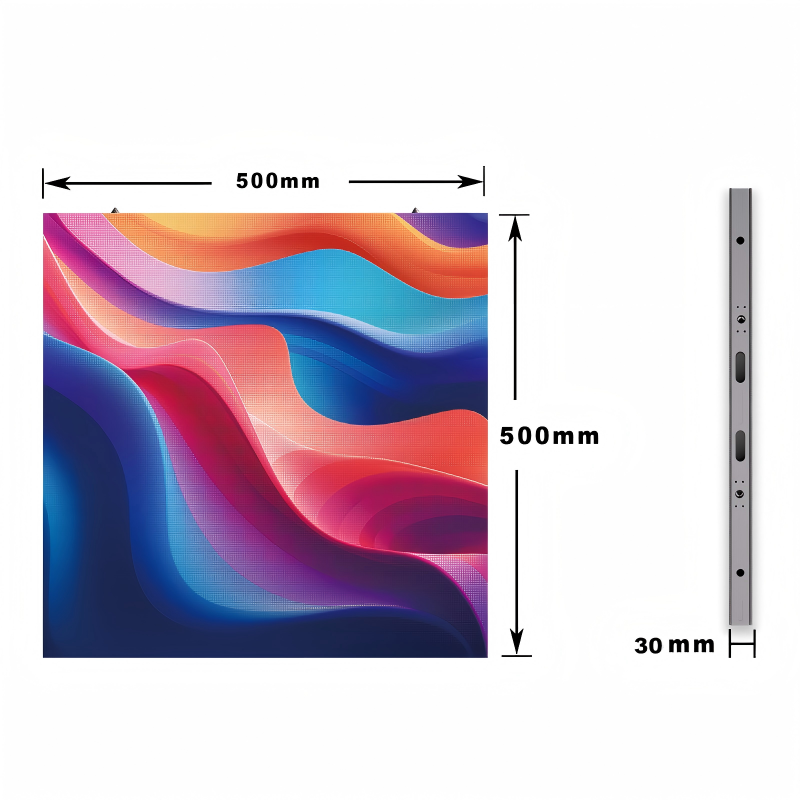

Cabinet Size	500×500×30mm
Thickness of LED display	(24mm/30mm) (Single-sided/Double-sided)
Cabinet Material	Aluminum profile cabinet, lightweight and thin
Brightness	600–3500 nits LED display screen supports adjustable brightness on both sides
Refresh Rate	≥7680 Hz
Viewing Angle (H/V)	160° / 160°
Grayscale	14–16 bit
Contrast Ratio	≥5000:1
Maintenance	Full Front Service (Magnetic)
IP Rating (Front/Rear)	IP31
Operating Temp.	-40°C ~ +60°C
Lifespan	≥100,000 Hours
Certifications	CE / RoHS / FCC / KC
Input Voltage	AC100–240V, 50/60Hz
Media available	Datasheet, EDA/CAD Models, Other, Photo ,video,3D,and other formats
Mounting options	Lifting/Side Installation/Fixed Installation/ Ceiling Mount,/Custom Mount/Floor Stand/Wall Mount
Life Time	≥ 100000(Hours)

Custom pixel pitch and cabinet sizes available upon request for project-specific needs.

Installation Options of double side led display:

Hanging / Ceiling Suspended – Perfect for window displays and mall atria
Window-Mounted – Direct glass attachment with minimal intrusion
Wall-Mounted – Suitable for indoor commercial and institutional spaces

Why Choose HSCXLED?

Shenzhen H&S Innovation Technology Co., Ltd is a professional LED display manufacturer specializing in innovative commercial signage solutions—includingultra-thin double-sided LED LED displays, Outdoor Advertising LED Display, COB LED display,Light Pole LED Display,LED Poster Display, and fine-pitch LED screens. Backed by strict quality control, global service support, and customizable OEM/ODM options, we help your digital signage projects stand out worldwide.
